The PA900 Series

Precision that pays off

High Performance. Lower Cost. Smaller Footprint.

Talk to an Expert

BEST-IN-CLASS PRECISION WITH Fewer HASSLES

Get exceptional performance at a price you can afford. Plus, add new functionality later with simple field upgrades.

Accuracy

0.024% Base Accuracy

Power measurement you can defend

0.015% Voltage AND 0.018% Current Base Accuracy

Harmonics

500 Harmonic Orders

See what others miss

Capture detailed behavior to meet demanding requirements.

Crest

100:1 Crest Factor

Take on distorted waveforms

Designed to deliver stable, repeatable results.

Get Your Team Testing Faster

Fast Set Up

ISO 17025 accredited calibration is available directly from the factory.

Built-In Essential Functions

Standby power and Assess EUT mode are easily accessible from the touchscreen, with fewer multi-tier menus to navigate. And if a new technician forgets a step, you can quickly retrieve past measurements and data using the history screen mode, or monitor it remotely via data streaming queries and controls through standard communication I/O.

Tailored for Compliance

Functionality for compliance testing to EN50564 and EN61000-3-2 / 3-12, as well as avionics standards, including:

  • •RTCA DO-160C/F/G
  • •Boeing 78783-0147
  • •Airbus ABD0100.1.8 (A380) & 1.8.1 (A350)

How We Measure Up

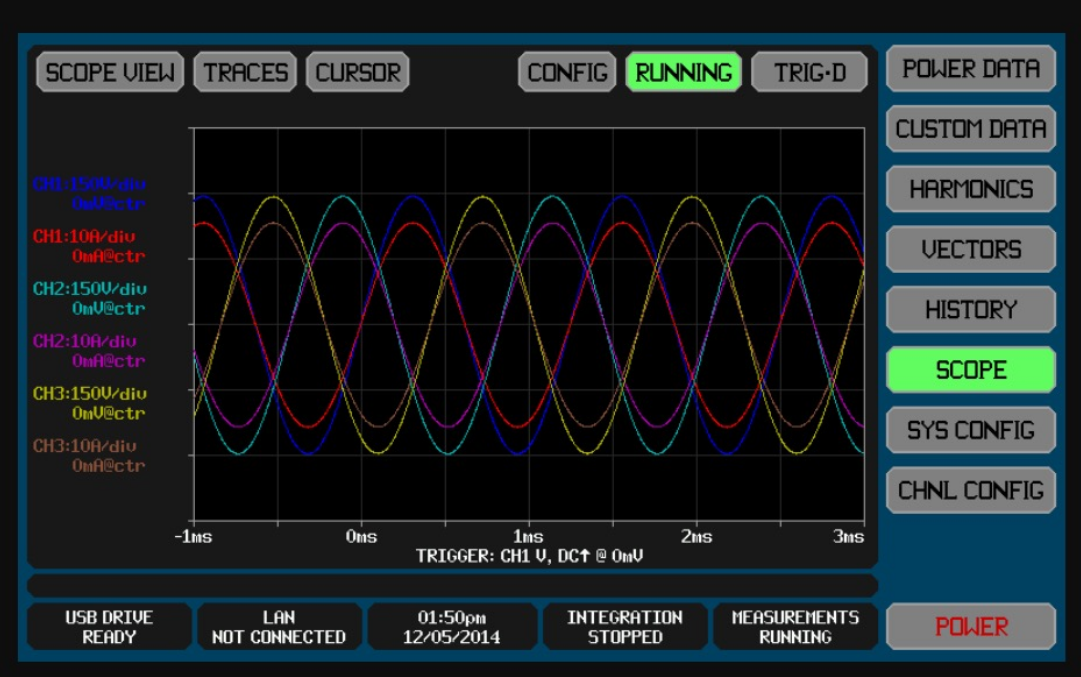

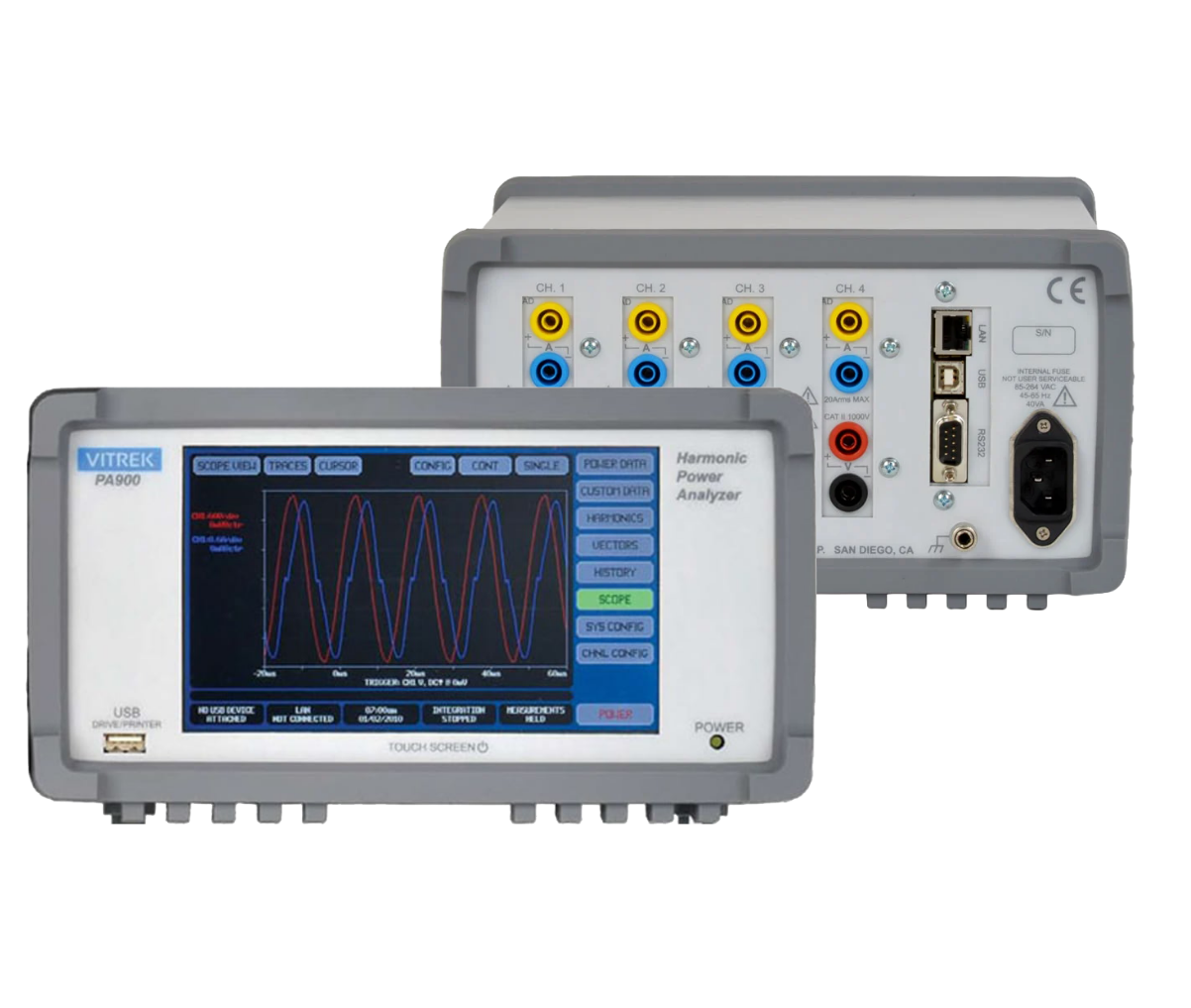

PA900 Scope Interface

Precision That Matters

The PA900 series delivers uniquely precise Spectrum Analysis, with frequency resolution down to 0.01 Hz and coverage up to 590 kHz for harmonic, inter-harmonic, and sub-harmonic measurements.

SCOPE gives you a built-in, multi-channel oscilloscope.

PA900 Scope Interface

Big on Performance. Small on Space.

Fewer moving parts enable us to deliver both value and performance, with specifications that remain valid for up to two years—two to four times longer than leading competitors. That difference translates to lower recalibration costs and higher reliability.

The PA900 series smaller, lightweight design saves workstation space and improves portability for use across multiple workstations.

Modular Flexibility

Buy exactly what you need. Field upgradeability means you can add boards to increase test capabilities when needed. There’s no need to overpay upfront or replace your entire analyzer.

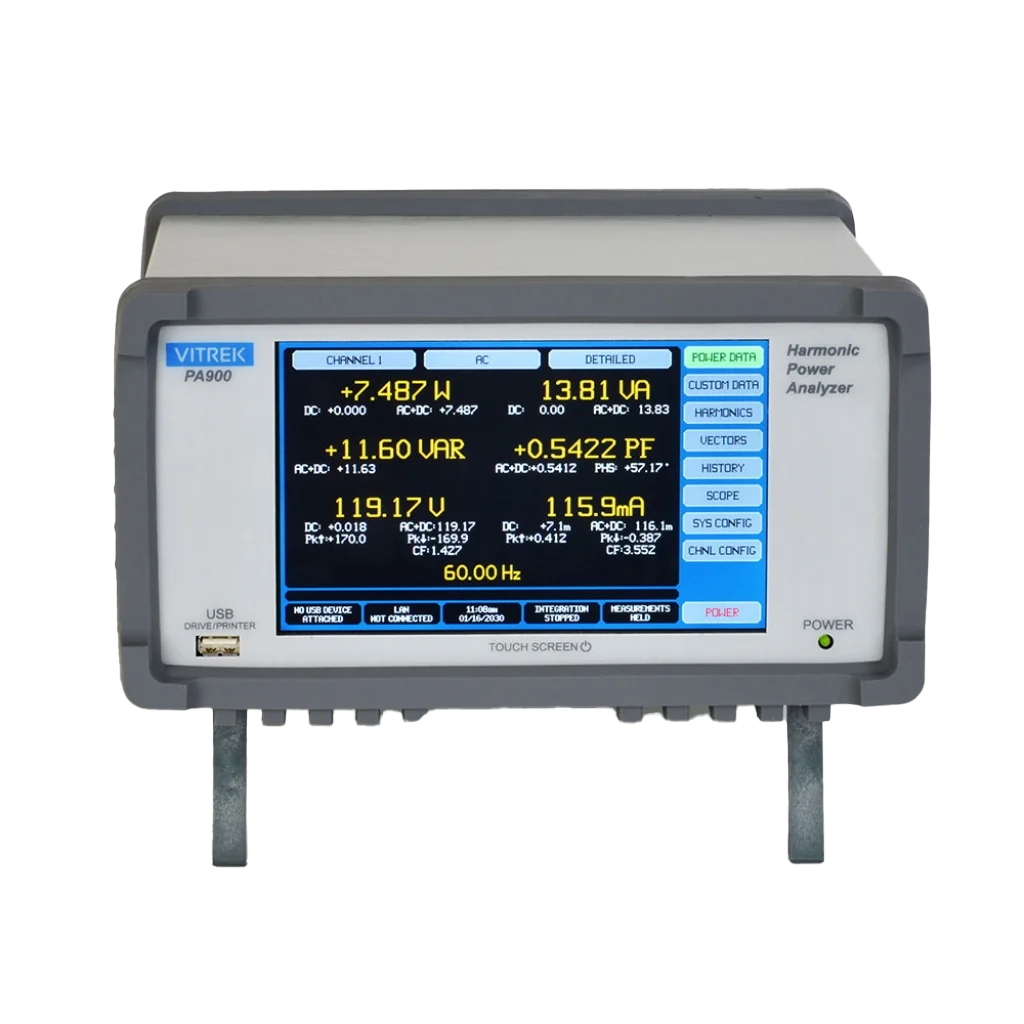

PA900

PA900

Precision Power
Analyzers

Base configuration:

  • Up to 0.045% base power accuracy
  • 435 kHz harmonic bandwidth
  • 384 MSPS effective sampling rate
  • Modular 1–4 channel architecture
  • Built-in scope, FFT, logging, and vector display
  • Customizable power data screens

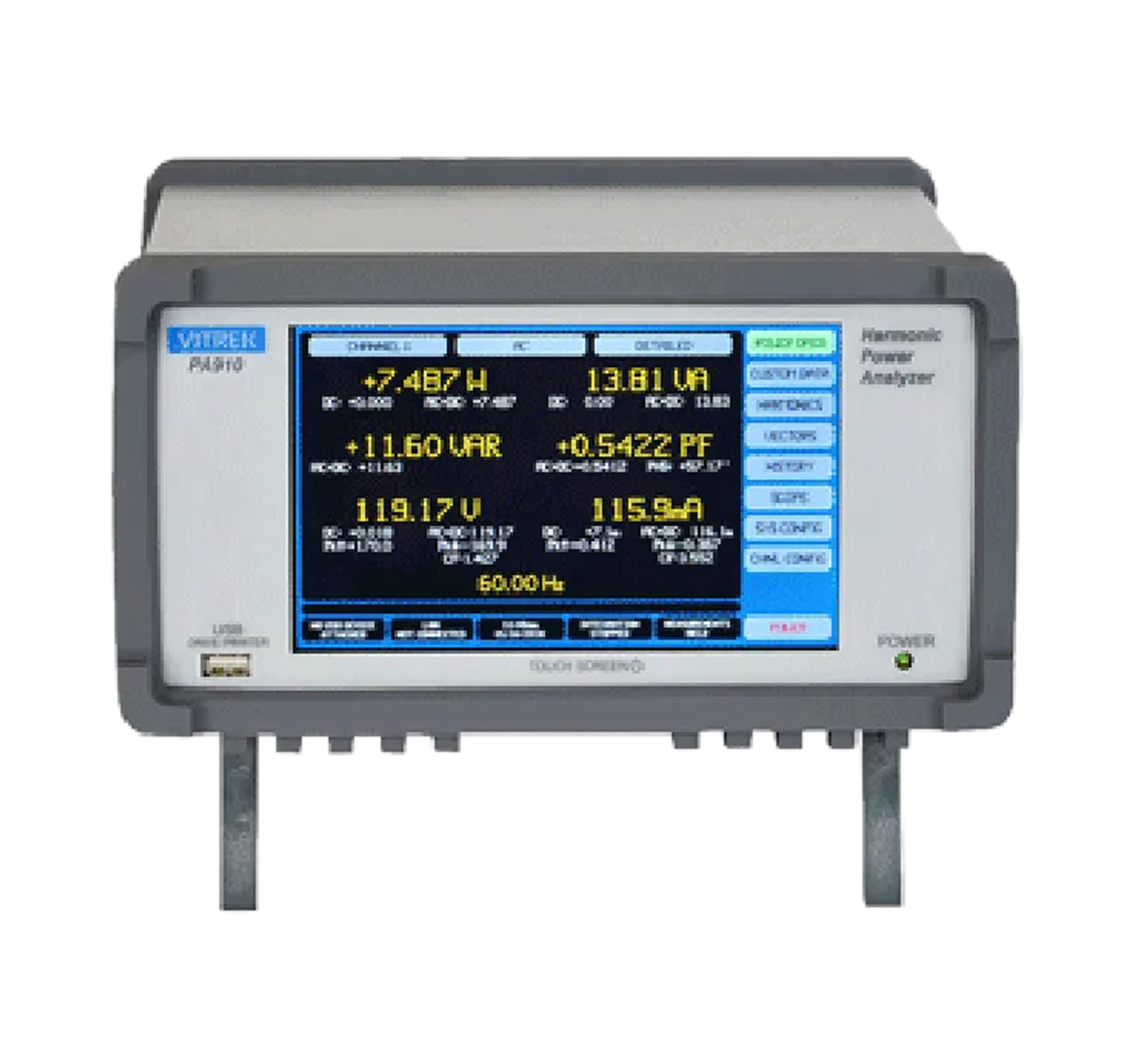

PA910

PA910

High Accuracy Power
Analyzers

All the features of PA900 plus:

  • 590kHz Harmonic Bandwidth
  • Improved stability for dynamic and pulsed loads
  • Faster, more repeatable results across changing conditions
  • Ideal for compliance and characterization testing

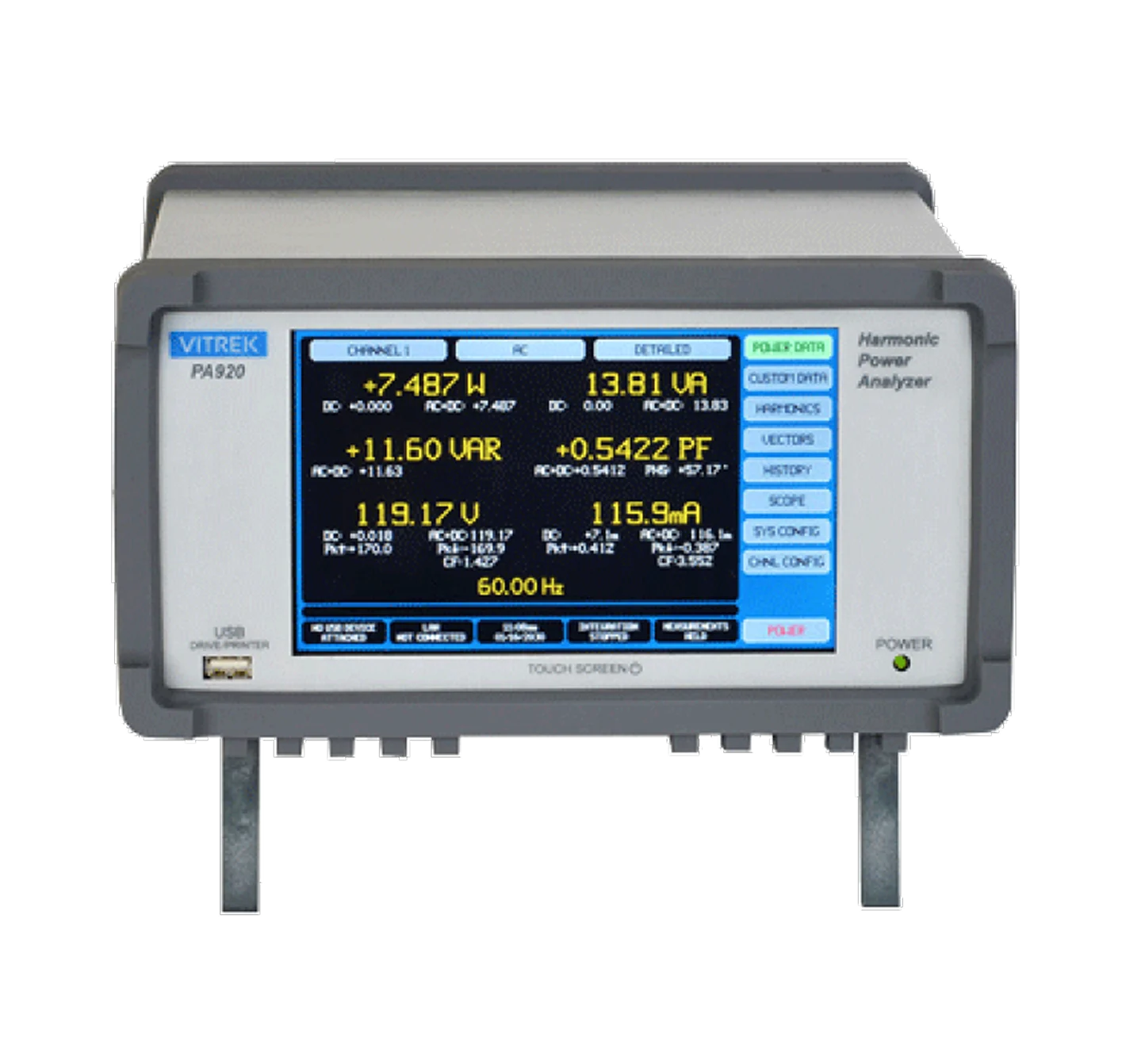

PA920

PA920

Ultra-High Accuracy
Power Analyzers

All the features of PA910 plus:

  • 0.024% base accuracy across all channels
  • Advanced self-heating compensation
  • Superior phase and amplitude stability
  • Designed for complex, multi-phase systems
  • Best choice for R&D validation and reference measurements

Talk to a Power Expert

Need more functionality? Talk to us about field-upgradability without the cost of a whole new system. If you’re not satisfied with your power analyzer for any reason, return it within 30 days. Just pay shipping.

Still have questions? Schedule a time to chat. We’ll help you select the right fit for your application needs.

Schedule a DemoTalk to an Expert
