1510A-7500-7494 BNC to Pins Adapter Cable (Size 22)
$180.00

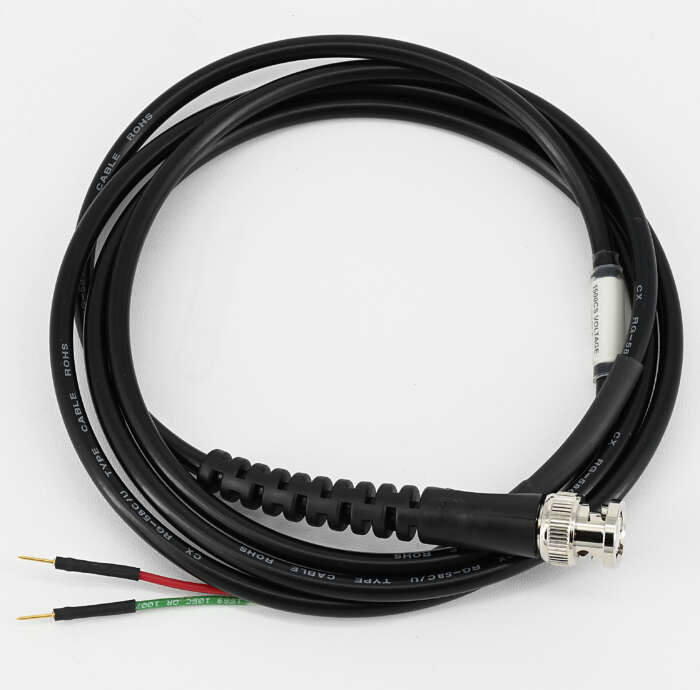

1510A-7500-7494 BNC to Pins Adapter Cable – 5-foot cable with a BNC connector on one end and Size 22 pins on the other designed to inject signal into a wiring harness.
- Portable and Rugged – Take the 1510A on the road on the production floor. Its compact form factor and rugged design includes spill proof keyboard which makes it ideal for power plants, service work and outdoor use.
- High accuracy – The 1510A provides voltage and frequency signals with 0.05% accuracy.
- Dual frequency synthesizers – The 1510A features two independent digital synthesizers for accurate and independent control of signals.
- Twin mode signal outputs – The 1510A provides CHARGE signals for simulating the signals from accelerometers, and voltage signals for simulating signals from VELOCITY and other voltage generating sensors.
- Multiple output wave shapes – The 1510A has the flexibility to generating SINE, SQUARE, TRIANGLE or SAWTOOTH waveforms for vibration signals. DC signals can be generated as an offset or as an independent output signal. Timing pulses with variable duty cycles can also be synthesized.
- True engine speed signals – The 1510A produces tachometer generator speed signals as well as odd-tooth type signals for simulating all types of engine and machinery speed signals.
- JOG function – The 1510A allows users to slowly vary output signal parameters to aid in detecting “sweet spots” or finding critical signal values.
- Automatic sweep function – The sweep function of the 1510A allows simulation of machinery startups and shutdowns.
- Rechargeable batteries – The 1510A operates for several hours on a single charge of its built-in NiMH batteries. This offers great flexibility in where and how you use your new calibrator.
- Flexible programming – Up to 40 different “settings” can be SAVED and RECALLED instantly to make test set-up fast, easy, and repeatable.
- Programming Port – The built-in USB port permits remote control of the 1510A as well as re-calibration and pre-programming of control memories and calibration with optional software.
| Feature | 1520 | 1510A |
|---|---|---|
 |  | |
| Dimensions | 257 mm L x 155.2 mm W x 55.9 mm H 10.12 in L x 6.11 in W x 2.22 in H | 190 mm L x 11 mm W x 57 mm H 7.5 in L x 4.25 in W x 2.22 in H |
| Weight | 1 kg (2.2 lbs) excludes interface cables/connectors/charger | 0.8 kg (1.8 lb) approx. excludes interface cables/connectors/charger |
| Power | External charger operates from 115/230VAC, 50-60Hz up to 36 watts for fast charging | External charger operates from 115/230VAC, 50-60Hz Approximately 5 watts |
| Battery | Rechargeable, Lithium Ion battery, Non-Removable | Battery Pack – NIMH, 2500mAH, size AA (Qty 4) |
| Battery Life | Up to 10 hours (typical) from full charge (depending on use of the display/back-light and wireless) | Up to 6 hours (typical) from full charge (depending on use of the display/back-light and wireless) |
| Signals | Single Current Loop, Dual Voltage, and Single Charge Mode in both Single Ended and Differential Forms | Dual Voltage, and Single Charge Mode in both Single Ended and Differential Forms |
| Waveforms | Custom, Sine, Square, Triangle, Pulse, Tachometer, and Sawtooth from 0.1 Hz to 100kHz in 0.1 Hz increments | Sine, Square, Triangle, Pulse, Tachometer, and Sawtooth from 0.1 Hz to 100kHz in 0.1 Hz increments |
| Set-Up Memory | 100 locations to save settings for all outputs and functions | 40 locations to save settings for all outputs and functions |
| Connectivity | USB-C, WiFi for remote operation, Bluetooth capability for future expansion | USB-A Connector USB 1.0 for remote control, programming and calibration |
| User Display | 320×240 TFT Color Resistive Touchscreen, Glove Compatible LCD white Back-light | Graphical, 128×64 pixel B&W LCD White Back-light |
| Interface | Touch Screen and Keypads | Menu Driven, Keypads |
