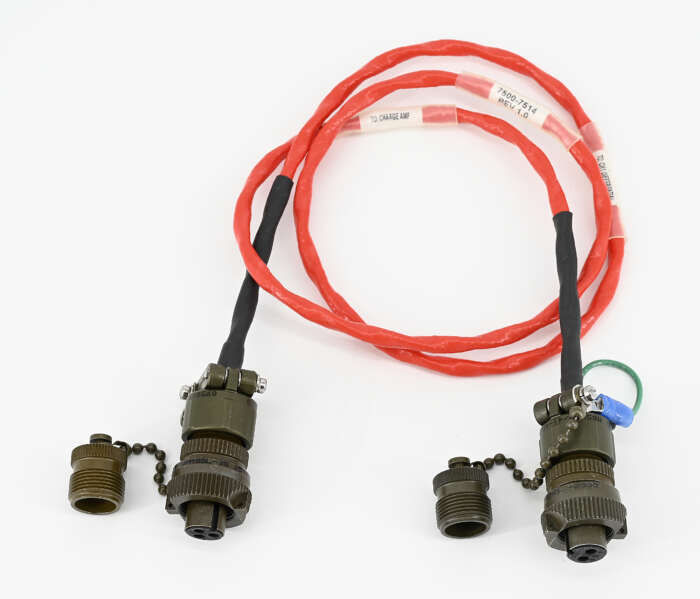

1510A-7500-7514 Differential Charge Output Adapter Cable (2-pin)
$285.00
1510A-7500-7514 Differential Charge Output Adapter Cable (2-pin) – Same as 7500-7509, with an MS3106-2SL (2-pin) connector (sockets) for compatible charge amplifiers.
- Portable and Rugged – Take the 1510A on the road on the production floor. Its compact form factor and rugged design includes spill proof keyboard which makes it ideal for power plants, service work and outdoor use.
- High accuracy – The 1510A provides voltage and frequency signals with 0.05% accuracy.
- Dual frequency synthesizers – The 1510A features two independent digital synthesizers for accurate and independent control of signals.
- Twin mode signal outputs – The 1510A provides CHARGE signals for simulating the signals from accelerometers, and voltage signals for simulating signals from VELOCITY and other voltage generating sensors.
- Multiple output wave shapes – The 1510A has the flexibility to generating SINE, SQUARE, TRIANGLE or SAWTOOTH waveforms for vibration signals. DC signals can be generated as an offset or as an independent output signal. Timing pulses with variable duty cycles can also be synthesized.
- True engine speed signals – The 1510A produces tachometer generator speed signals as well as odd-tooth type signals for simulating all types of engine and machinery speed signals.
- JOG function – The 1510A allows users to slowly vary output signal parameters to aid in detecting “sweet spots” or finding critical signal values.
- Automatic sweep function – The sweep function of the 1510A allows simulation of machinery startups and shutdowns.
- Rechargeable batteries – The 1510A operates for several hours on a single charge of its built-in NiMH batteries. This offers great flexibility in where and how you use your new calibrator.
- Flexible programming – Up to 40 different “settings” can be SAVED and RECALLED instantly to make test set-up fast, easy, and repeatable.
- Programming Port – The built-in USB port permits remote control of the 1510A as well as re-calibration and pre-programming of control memories and calibration with optional software.
| Feature | 1520 | 1510A |
|---|---|---|
 |  | |
| Dimensions | 257 mm L x 155.2 mm W x 55.9 mm H 10.12 in L x 6.11 in W x 2.22 in H | 190 mm L x 11 mm W x 57 mm H 7.5 in L x 4.25 in W x 2.22 in H |
| Weight | 1 kg (2.2 lbs) excludes interface cables/connectors/charger | 0.8 kg (1.8 lb) approx. excludes interface cables/connectors/charger |
| Power | External charger operates from 115/230VAC, 50-60Hz up to 36 watts for fast charging | External charger operates from 115/230VAC, 50-60Hz Approximately 5 watts |
| Battery | Rechargeable, Lithium Ion battery, Non-Removable | Battery Pack – NIMH, 2500mAH, size AA (Qty 4) |
| Battery Life | Up to 10 hours (typical) from full charge (depending on use of the display/back-light and wireless) | Up to 6 hours (typical) from full charge (depending on use of the display/back-light and wireless) |
| Signals | Single Current Loop, Dual Voltage, and Single Charge Mode in both Single Ended and Differential Forms | Dual Voltage, and Single Charge Mode in both Single Ended and Differential Forms |
| Waveforms | Custom, Sine, Square, Triangle, Pulse, Tachometer, and Sawtooth from 0.1 Hz to 100kHz in 0.1 Hz increments | Sine, Square, Triangle, Pulse, Tachometer, and Sawtooth from 0.1 Hz to 100kHz in 0.1 Hz increments |
| Set-Up Memory | 100 locations to save settings for all outputs and functions | 40 locations to save settings for all outputs and functions |
| Connectivity | USB-C, WiFi for remote operation, Bluetooth capability for future expansion | USB-A Connector USB 1.0 for remote control, programming and calibration |
| User Display | 320×240 TFT Color Resistive Touchscreen, Glove Compatible LCD white Back-light | Graphical, 128×64 pixel B&W LCD White Back-light |
| Interface | Touch Screen and Keypads | Menu Driven, Keypads |
Ordering
Below prices in US$ are for destinations in North America with terms of prepay, net 30 days (OAC) and accepted credit cards. For shipment beyond North America or terms beyond 30 days, please contact the factory for a quotation. If you require rush/expedited shipment please contact Vitrek at (858) 689-2755 or email info@vitrek.com
1510A Signal Generator Units
| Thumbnail | Name | Short description | Price | Buy |
|---|---|---|---|---|
 | 1510A Precision Aviation Diagnostic Kit for Navy Aircraft | 1510A Precision Aviation Diagnostic Kit for Navy Aircraft | $7,295.00 | |
| 1510A Aviation Diagnostic Kit | 1510A Aviation Diagnostic Kit | $5,270.00 | |
| 1510A-8000-7006K | 1510A Precision Signal Generator with Case | $3,600.00 | |
#wtbp-table-53_773654_wrapper table {border-collapse: collapse;} #wtbp-table-53_773654 {border: 1px solid #e0e0e0 !important;} #wtbp-table-53_773654_wrapper .dataTables_scroll {border: 1px solid #e0e0e0 !important;} #wtbp-table-53_773654_wrapper .DTFC_ScrollWrapper {border: 1px solid #e0e0e0 !important;} #wtbp-table-53_773654_wrapper .DTFC_ScrollWrapper .dataTables_scroll {border: none !important;} #wtbp-table-53_773654_wrapper .dataTables_scrollBody table {border: none !important;} .wtbpModalContent {width: 80%;} .wtbpModalContent.wtbpModalContentForVariations {max-width: 600px;}
1510A Accessories
| Thumbnail | Name | Short description | Price | Buy |
|---|---|---|---|---|
 | 1510A Support Software Package | 1510A Support Software Package | $465.00 | |
 | 1510A Carrying Case-Replacement | 1510A Carrying Case-Replacement | $190.00 | |
 | 1510A-4000-0024 Replacement Battery Charger | 1510A-4000-0024 Replacement Battery Charger | $95.00 | |
 | 1510A-8000-6444 100-240 VAC Wall Adapter Charger | 1510A-8000-6444 100-240 VAC Wall Adapter Charger | $85.00 | |
 | 1510A-4000-0023-4 | 1510A Replacement Battery Pack - (4) NiMH Batteries | $75.00 | |
 | 1510A-7000-7503 Replacement RS-232 Cable | 1510A-7000-7503 Replacement RS-232 Cable | $70.00 | |
 | 1510A-7000-7002 Replacement Protective Boot | 1510A-7000-7002 Replacement Protective Boot | $65.00 | |
 | 1510A-6000-2001 Replacement USB Cable | 1510A-6000-2001 Replacement USB Cable | $55.00 | |
 | 1510A-7001-0019 Additional Users Guide | 1510A-7001-0019 Additional Users Guide | $45.00 | |
| 1510A-7001-0040 Additional Users Guide | 1510A-7001-0040 Additional Users Guide | $45.00 | |
#wtbp-table-55_996349_wrapper table {border-collapse: collapse;} #wtbp-table-55_996349 {border: 1px solid #e0e0e0 !important;} #wtbp-table-55_996349_wrapper .dataTables_scroll {border: 1px solid #e0e0e0 !important;} #wtbp-table-55_996349_wrapper .DTFC_ScrollWrapper {border: 1px solid #e0e0e0 !important;} #wtbp-table-55_996349_wrapper .DTFC_ScrollWrapper .dataTables_scroll {border: none !important;} #wtbp-table-55_996349_wrapper .dataTables_scrollBody table {border: none !important;} .wtbpModalContent {width: 80%;} .wtbpModalContent.wtbpModalContentForVariations {max-width: 600px;}
1510A Cables
| Thumbnail | Name | Short description | Price | Buy |
|---|---|---|---|---|
| 1510A-7500-7555 1510A Differential Output cable set | 1510A-7500-7555 1510A Differential Output cable set | $2,065.00 | |
| 1510A-Differential Charge Output Adapter Cable | 1510A-Differential Charge Output Adapter Cable | $825.00 | |
| 1510A-7500-7497 Differential Charge Output Cable (Size 22) | 1510A-7500-7497 Differential Charge Output Cable (Size 22) | $285.00 | |
| 1510A-7500-7498 Differential Charge Output Cable (Size 20) | 1510A-7500-7498 Differential Charge Output Cable (Size 20) | $285.00 | |
| 1510A-7500-7499 Differential Charge Output Cable (Size 16) | 1510A-7500-7499 Differential Charge Output Cable (Size 16) | $285.00 | |
| 1510A-7500-7500 Differential Charge Output Cable (Size 22) | 1510A-7500-7500 Differential Charge Output Cable (Size 22) | $285.00 | |
| 1510A-7500-7501 Differential Charge Output Cable (Size 20) | 1510A-7500-7501 Differential Charge Output Cable (Size 20) | $285.00 | |
| 1510A-7500-7502 Differential Charge Output Cable (Size 16) | 1510A-7500-7502 Differential Charge Output Cable (Size 16) | $285.00 | |
| 1510A-7500-7514 Differential Charge Output Adapter Cable (2-pin) | 1510A-7500-7514 Differential Charge Output Adapter Cable (2-pin) | $285.00 | |
| 1510A-7500-7491-BNC to Sockets Adapter Cable (Size 22) | 1510A-7500-7491-BNC to Sockets Adapter Cable (Size 22) | $180.00 | |
| 1510A-7500-7492 BNC to Sockets Adapter Cable (Size 20) | 1510A-7500-7492 BNC to Sockets Adapter Cable (Size 20) | $180.00 | |
| 1510A-7500-7493 BNC to Sockets Adapter Cable (Size 16) | 1510A-7500-7493 BNC to Sockets Adapter Cable (Size 16) | $180.00 | |
| 1510A-7500-7494 BNC to Pins Adapter Cable (Size 22) | 1510A-7500-7494 BNC to Pins Adapter Cable (Size 22) | $180.00 | |
| 1510A-7500-7495 BNC to Pins Adapter Cable (Size 20) | 1510A-7500-7495 BNC to Pins Adapter Cable (Size 20) | $180.00 | |
| 1510A-7500-7496 BNC to Pins Adapter Cable (Size 16) | 1510A-7500-7496 BNC to Pins Adapter Cable (Size 16) | $180.00 | |
| 1510A-6000-4005 | 1510A BNC to BNC Adapter Cable | $105.00 | |
#wtbp-table-56_790513_wrapper table {border-collapse: collapse;} #wtbp-table-56_790513 {border: 1px solid #e0e0e0 !important;} #wtbp-table-56_790513_wrapper .dataTables_scroll {border: 1px solid #e0e0e0 !important;} #wtbp-table-56_790513_wrapper .DTFC_ScrollWrapper {border: 1px solid #e0e0e0 !important;} #wtbp-table-56_790513_wrapper .DTFC_ScrollWrapper .dataTables_scroll {border: none !important;} #wtbp-table-56_790513_wrapper .dataTables_scrollBody table {border: none !important;} .wtbpModalContent {width: 80%;} .wtbpModalContent.wtbpModalContentForVariations {max-width: 600px;}
- Cabling and wiring troubleshooting
- Audio signal simulation
- Vibration signal simulation – accelerometers and velocity probes
- Machinery speed signal simulation
- Low-voltage bridge sensor signal simulation
- Calibration of:
- Monitoring systems
- Charge amplifiers
- Avionics equipment
The 1510 Portable Precision Signal Generator
An Introduction to the 1510 Portable Signal Generator
Using the 1510A Portable Signal Generator with the PBS-4100+
How to Simulate, Calibrate and Verify Field Sensor Transmission with a Portable Signal Generator
