PBS eXpress
Built specifically for small-frame turbofan and turboprop engines used extensively in the regional jet, business jet, and general aviation markets using our industry-leading engine vibration and balancing technology DNA. The PBS eXpress provides fast vibration assessment and rapid one-shot balancing if necessary. The Trim Balance Wizard makes it easy to set up and use, guiding even 1st-time users to success in as little as two engine runs.
About the PBS eXpress

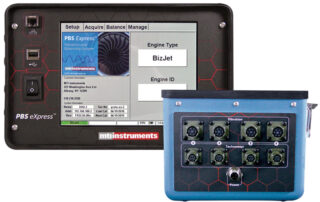

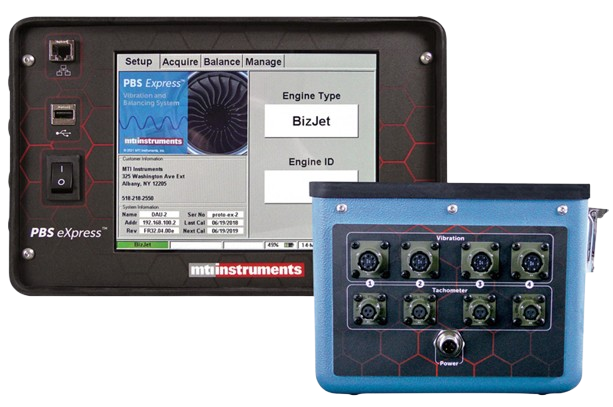

The PBS eXpress is a vibration measurement and engine rotor balancing system designed for the small-frame turbofan and turboprop engines used extensively in the regional jet, business jet, and general aviation markets. Built upon MTI’s proven PBS 4100+ technology — the most respected turbine engine vibration and balancing solution in the market — the PBS eXpress delivers fast vibration assessment and rapid one-shot balancing when an engine measures an exceedance.
The system is available in two configurations to match your operational environment: a portable on-wing version for field maintenance and line operations, and a rack-mount version (PBS eXpress R+) engineered for MRO test stands and test cell environments. Both versions integrate four instruments in one system with automatic data collection and a guided Balancing Wizard to deliver precise results with minimal engine run time.
Simplicity
- Easy to setup: preconfigured engine parameters — just connect cables and begin testing
- Intuitive touch-based user interface (portable version)
- Works with existing cable sets for enhanced migration capabilities (portable version)
- Compatible with odd-tooth tachometer sensors (including short/long/offset tooth types)
- The PBS eXpress R+ connects directly to test cell data systems via Ethernet-based interface, with no display required — designed for shop environments where the instrument is controlled remotely
Trim Balance Wizard
- Guides even first-time users to success in as little as two engine runs
- Configurable balance speed points and associated bias/weighting
- Transient Balance
- Influence Coefficients
Powerful Visualization
- Vibration surveys with exceedance limits shown on the plot
- Order tracking for accessories such as starter generators and fuel pumps
- Create reports with integrated plots and tables
- Save raw data to CSV files
Data System Integration — PBS eXpress R+ Rack Version

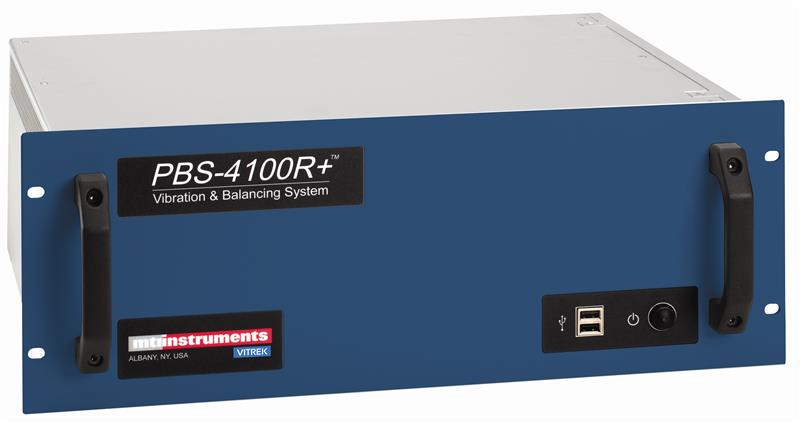

The PBS eXpress R+ is purpose-built for MRO test stands and high-throughput test cell environments.
- Integrates directly with test cell data systems
- Remote control and data transfer via Ethernet-based digital data interface
- Optional analog output channels configurable to any measured parameter, including vibration, speed, and phase
Who Benefits
- MRO Organizations: Both versions support rapid problem identification and resolution. Line maintenance teams rely on the portable version for fast on-wing turnarounds. MRO shops running dedicated test stands benefit from the PBS eXpress R+, with its test cell data system integration, Ethernet-based remote control, and configurable analog outputs.
- Operators of Small to Mid-sized Corporate Jets: Designed to meet the price point and service requirements of corporate aviation, the portable PBS eXpress delivers upmarket balancing capability without the upmarket cost.
- Regional, Business, and General Aviation Markets: Supports the full range of engines used in these markets, with a continuously expanding list of supported platforms.
| BALANCING CAPABILITIES | |
| User Selectable | One Shot (stored influence coefficient); Trial Weight (baseline run and trial weight run) |
| Speeds | 1–20 speeds simultaneously (configurable speed points) |
| Channels | 1 to 4 channels simultaneously |
| Planes | 1 or 2 balance planes simultaneously |
| Weights | Up to 20 standard weight classes, user configurable |
| Types | Transient Balancing and Fixed Speed Point |
| SPEED INPUTS | |
| Input Channels | 2 standard, up to 4 optional for rack mount configrations |
| Input Voltage Range | 200V Pk-Pk |
| Speed Range | 150 to 100,000 RPM |
| Speed Accuracy | Better than 0.02% |
| Phase Accuracy | 1° typical |
| Types | Any 1/REV or embedded odd-tooth type signal (N/REV) (including short/long/offset tooth, optical, and tach ratio types) |
| VIBRATION INPUTS | |
| Input Channels | 2 standard, up to 4 optional |
| Input Voltage Range | 20V Pk-Pk |
| Frequency Range | 5 to 30 kHz |
| Tracked Amplitude Accuracy | Better than +/- 1% |
| Tracked Components | N1, N2, N3 + up to 4 customizable tracked orders |
| ADDITIONAL SPECIFICATIONS FOR PORTABLE VERSION | |
| Connectors | Industry compatible MS-type cannon plugs, universally compatible |
| Through-put | 4 spectra/sec |
| Power | Li-Ion Battery, up to 6-8 hr run time, 2.5 hr charge time. Able to operate while charging |
| Display | 8.4″ Color TFT display with Capacitive Touchscreen |
| Operating Temperature | 0–50°C operation (battery charging stops at 45°C) |
| Dimensions | 11.5″w x 7″d x 7″h (29.2 cm x 17.78 cm x 17.78 cm) |
| Weight | 9.8 lbs (4.45 kg) |
| ADDITIONAL SPECIFICATIONS — RACK-MOUNT VERSION (PBS eXpress R+) | |
| Connectors | Both BNC and D-SUB available |
| Power | 115/230 VAC, 50/60 Hz |
| Display | Requires external DVI monitor and USB mouse |
| Honeywell TFE731 family | GE CF34 | Williams FJ33 family |
| Honeywell HTF7xxx | GE HondaJet HF120 | Williams FJ44 family |
| Honeywell ALF500 series | PWC PT6 family | APU: Honeywell 131, 331, 36 series |
| Honeywell ATF3 | PWC 100 family | APU: PW900 series |
| Rolls-Royce BR700 series | PWC 300, 500, and 600 series | APU: PW APS series |
| Rolls-Royce/Allison 250 family | PWC JT15D |
