1510A Portable Signal Simulator
A portable signal source for calibration, testing, troubleshooting, and system monitoring
The 1510A Precision Portable Signal Generator and Calibrator is a must-have for engineers and technicians working in a variety of fields – from routine troubleshooting and maintenance, to calibrating and tuning advanced equipment such as eddy current probes, strain gauge amplifiers, or charge amplifiers for jet turbine vibration analysis.
About 1510A Signal Generator and Calibrator
The MTI 1510A is a sophisticated two-channel, battery-powered, microprocessor-controlled direct digital signal generator. Its rugged exterior design with battery-powered use makes it the ideal troubleshooting and diagnostic tool for deployment in the field.
It can generate a sine wave, a square wave, a sawtooth wave and triangle continuous signals on both channels as well as single pulse and odd pulses on the B channel to simulate tachometer output pulses.
Why two channels?
The main reason for two channels is to be able to create a phase shift in the A to B output signals as may be encountered in a piece of rotating equipment (such as a jet engine).
What makes the 1510A so unique?
- Compact size
- Portable, AA battery-operated (NiMH)
- Rugged
- High precision
- Programmable
- Dual charge output
- Backlit display
- Portable and Rugged – Take the 1510A on the road on the production floor. Its compact form factor and rugged design includes spill proof keyboard which makes it ideal for power plants, service work and outdoor use.
- High accuracy – The 1510A provides voltage and charge signals with accuracies to 0.05%. The frequency accuracy of its settings from 3Hz to 100kHz is 0.005%.
- Dual frequency synthesizers – The 1510A features two independent digital synthesizers for accurate and independent control of signals.
- Twin mode signal outputs – The 1510A provides CHARGE signals for simulating the signals from accelerometers, and voltage signals for simulating signals from VELOCITY and other voltage generating sensors.
- Multiple output wave shapes – The 1510A has the flexibility to generating SINE, SQUARE, TRIANGLE or SAWTOOTH waveforms for vibration signals. DC signals can be generated as an offset or as an independent output signal. Timing pulses with variable duty cycles can also be synthesized.
- True engine speed signals – The 1510A produces tachometer generator speed signals as well as odd-tooth type signals for simulating all types of engine and machinery speed signals.
- JOG function – The 1510A allows users to slowly vary output signal parameters to aid in detecting “sweet spots” or finding critical signal values.
- Automatic sweep function – The sweep function of the 1510A allows simulation of machinery startups and shutdowns.
- Rechargeable batteries – The 1510A operates for up to 6 hours on a single charge of its built-in NiMH batteries. This offers great flexibility in where and how you use your new calibrator.
- Flexible programming – Up to 40 different “settings” can be SAVED and RECALLED instantly to make test set-up fast, easy, and repeatable.
- Programming Port – The built-in USB port permits remote control of the 1510A as well as re-calibration and pre-programming of control memories and calibration with optional software.
Related Posts
What are High-Precisions Portable Signal Generators?
Accelerometer Signal Simulators vs Calibrators – What to Use and When
Ordering
Below prices in US$ are for destinations in North America with terms of prepay, net 30 days (OAC) and accepted credit cards. For shipment beyond North America or terms beyond 30 days, please contact the factory for a quotation. If you require rush/expedited shipment please contact Vitrek at (858) 689-2755 or email info@vitrek.com
1510A Signal Generator Units
| Thumbnail | Name | Short description | Price | Buy |
|---|---|---|---|---|
 | 1510A Precision Aviation Diagnostic Kit for Navy Aircraft | 1510A Precision Aviation Diagnostic Kit for Navy Aircraft | $8,427.00 | |
| 1510A Aviation Diagnostic Kit | 1510A Aviation Diagnostic Kit | $6,087.00 | |
| 1510A-8000-7006K | 1510A Precision Signal Generator with Case | $4,138.00 | |
1510A Accessories
| Thumbnail | Name | Short description | Price | Buy |
|---|---|---|---|---|
 | 1510A Support Software Package | 1510A Support Software Package | $535.00 | |
 | 1510A Carrying Case-Replacement | 1510A Carrying Case-Replacement | $220.00 | |
 | 1510A-4000-0024 Replacement Battery Charger | 1510A-4000-0024 Replacement Battery Charger | $110.00 | |
 | 1510A-8000-6444 100-240 VAC Wall Adapter Charger | 1510A-8000-6444 100-240 VAC Wall Adapter Charger | $100.00 | |
 | 1510A-4000-0023-4 | 1510A Replacement Battery Pack - (4) NiMH Batteries | $93.00 | |
 | 1510A-7000-7503 Replacement RS-232 Cable | 1510A-7000-7503 Replacement RS-232 Cable | $82.00 | |
 | 1510A-7000-7002 Replacement Protective Boot | 1510A-7000-7002 Replacement Protective Boot | $76.00 | |
 | 1510A-6000-2001 Replacement USB Cable | 1510A-6000-2001 Replacement USB Cable | $65.00 | |
1510A Cables
| Thumbnail | Name | Short description | Price | Buy |
|---|---|---|---|---|
| 1510A-7500-7555 1510A Differential Output cable set | 1510A-7500-7555 1510A Differential Output cable set | $2,386.00 | |
 | 1510A-Differential Charge Output Adapter Cable | 1510A-Differential Charge Output Adapter Cable | $956.00 | |

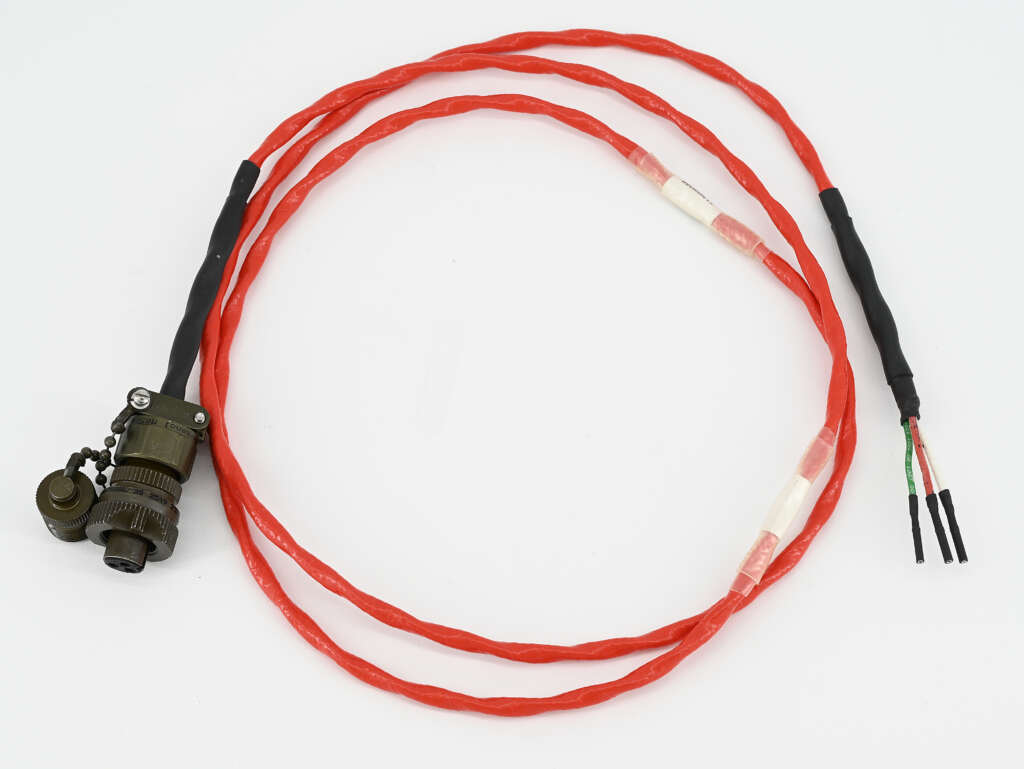

 | 1510A-7500-7497 Differential Charge Output Cable (Size 22) | 1510A-7500-7497 Differential Charge Output Cable (Size 22) | $330.00 | |

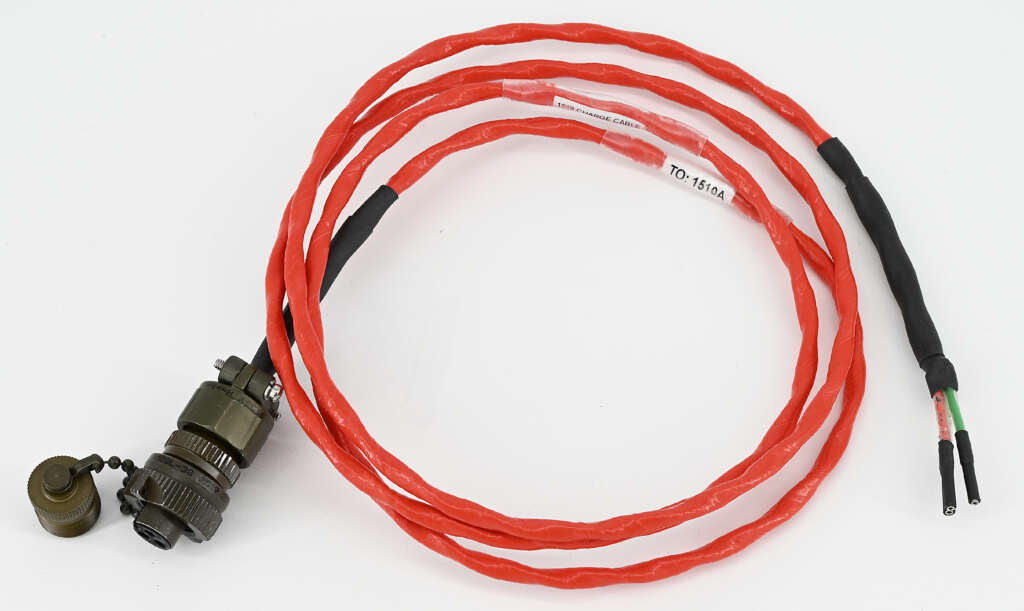

 | 1510A-7500-7498 Differential Charge Output Cable (Size 20) | 1510A-7500-7498 Differential Charge Output Cable (Size 20) | $330.00 | |

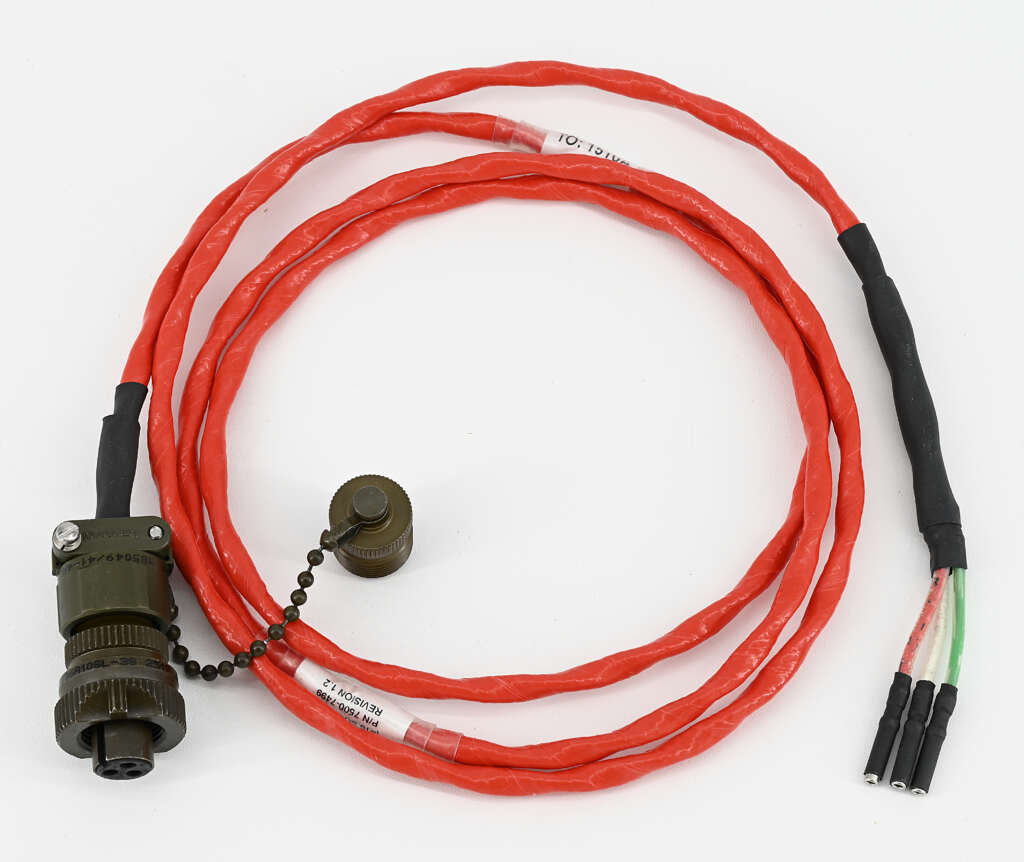

 | 1510A-7500-7499 Differential Charge Output Cable (Size 16) | 1510A-7500-7499 Differential Charge Output Cable (Size 16) | $330.00 | |

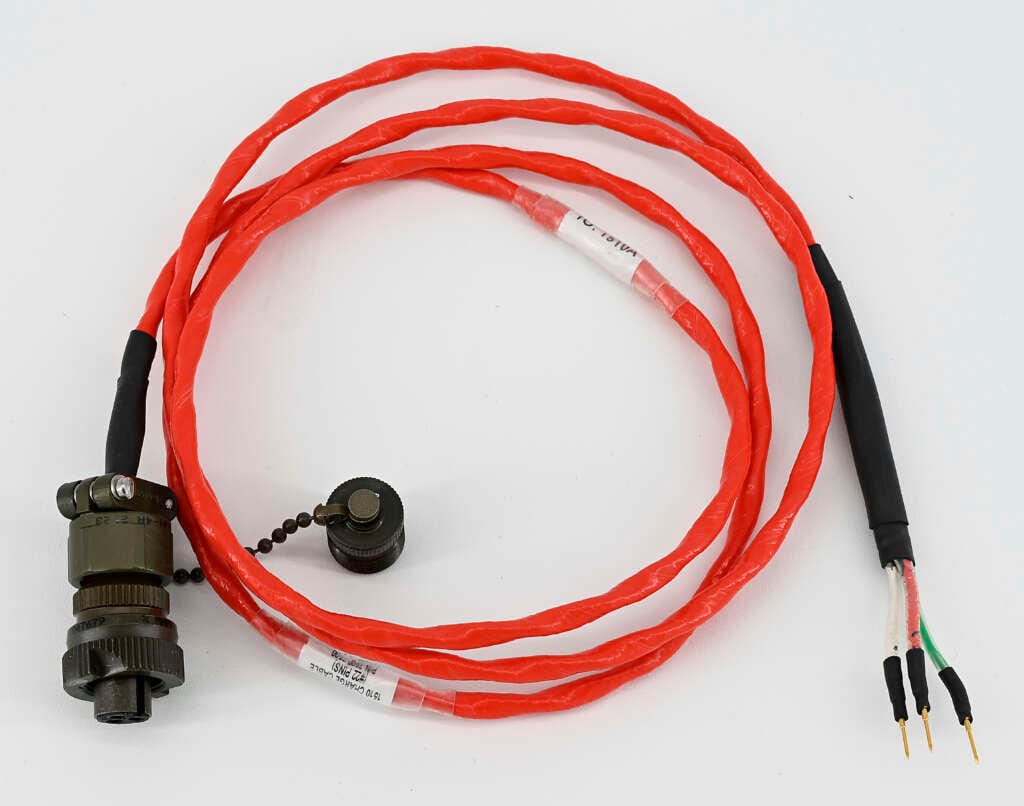

 | 1510A-7500-7500 Differential Charge Output Cable (Size 22) | 1510A-7500-7500 Differential Charge Output Cable (Size 22) | $330.00 | |

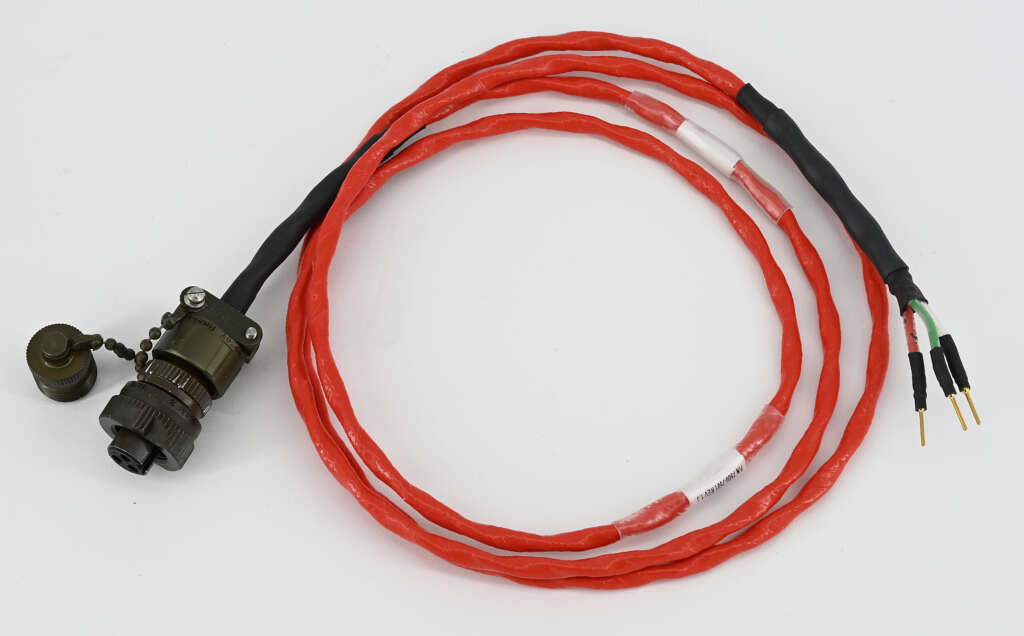

 | 1510A-7500-7501 Differential Charge Output Cable (Size 20) | 1510A-7500-7501 Differential Charge Output Cable (Size 20) | $330.00 | |
 | 1510A-7500-7502 Differential Charge Output Cable (Size 16) | 1510A-7500-7502 Differential Charge Output Cable (Size 16) | $330.00 | |
 | 1510A-7500-7514 Differential Charge Output Adapter Cable (2-pin) | 1510A-7500-7514 Differential Charge Output Adapter Cable (2-pin) | $330.00 | |

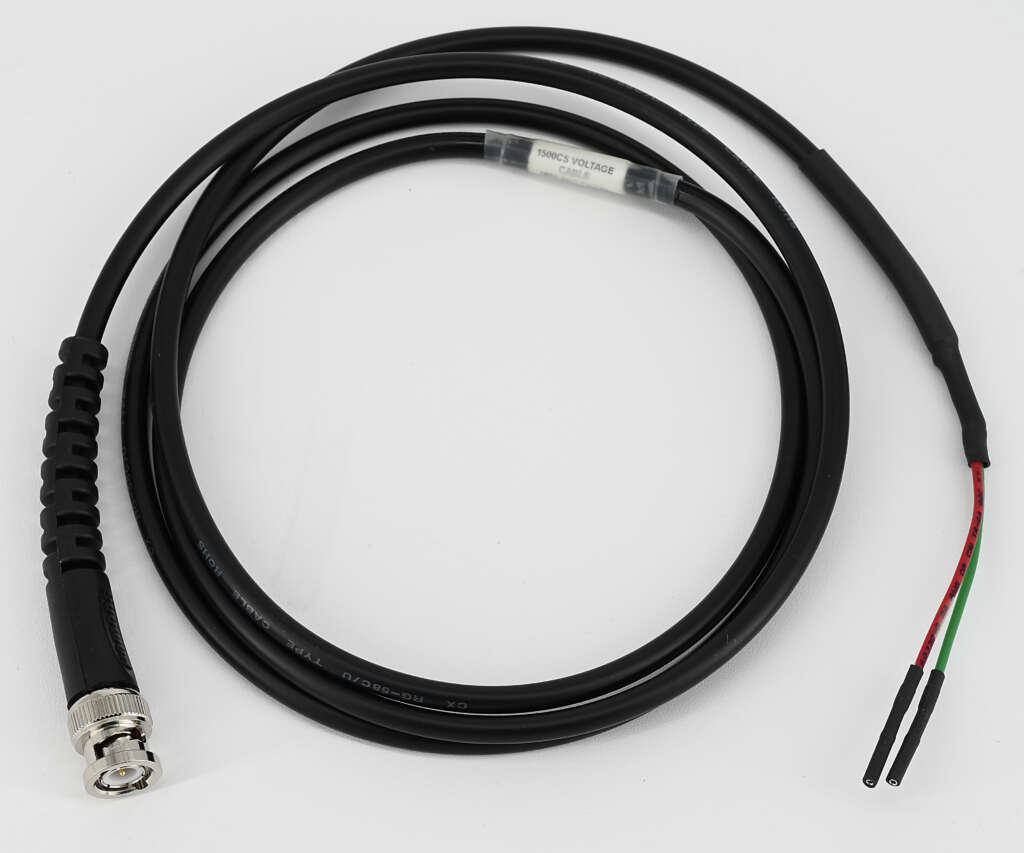

 | 1510A-7500-7491-BNC to Sockets Adapter Cable (Size 22) | 1510A-7500-7491-BNC to Sockets Adapter Cable (Size 22) | $208.00 | |

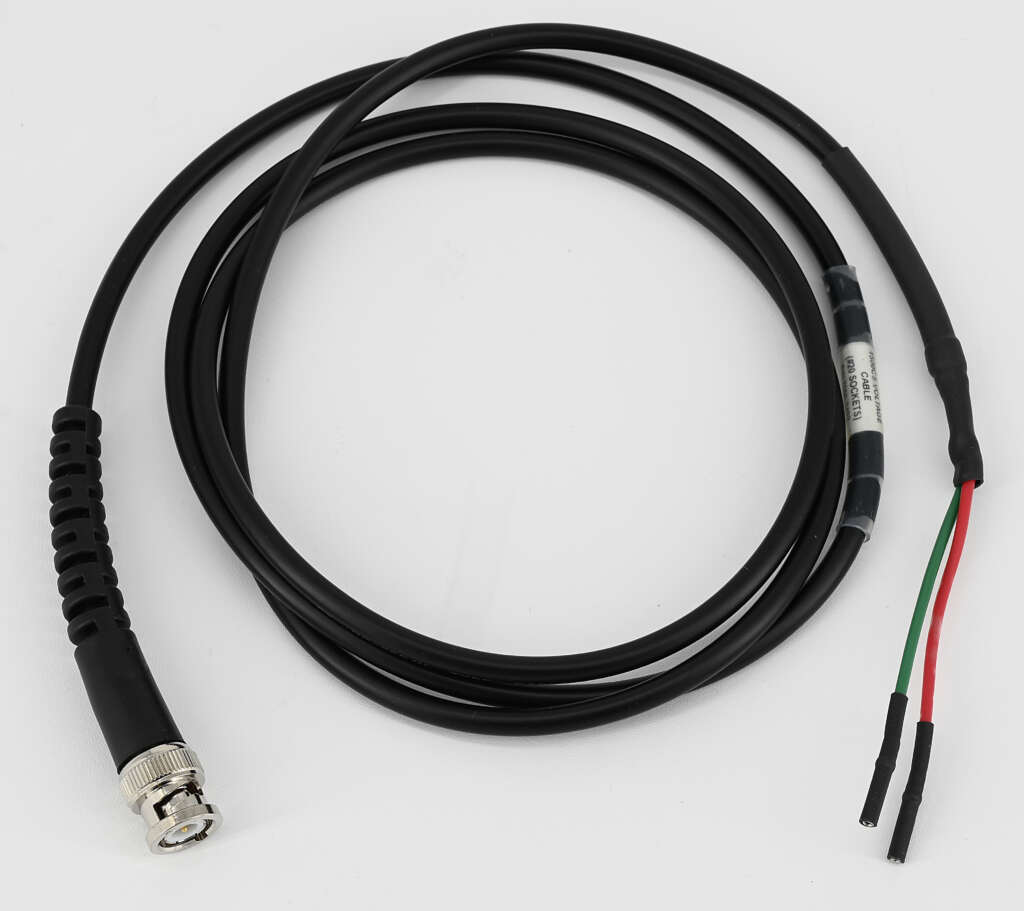

 | 1510A-7500-7492 BNC to Sockets Adapter Cable (Size 20) | 1510A-7500-7492 BNC to Sockets Adapter Cable (Size 20) | $208.00 | |

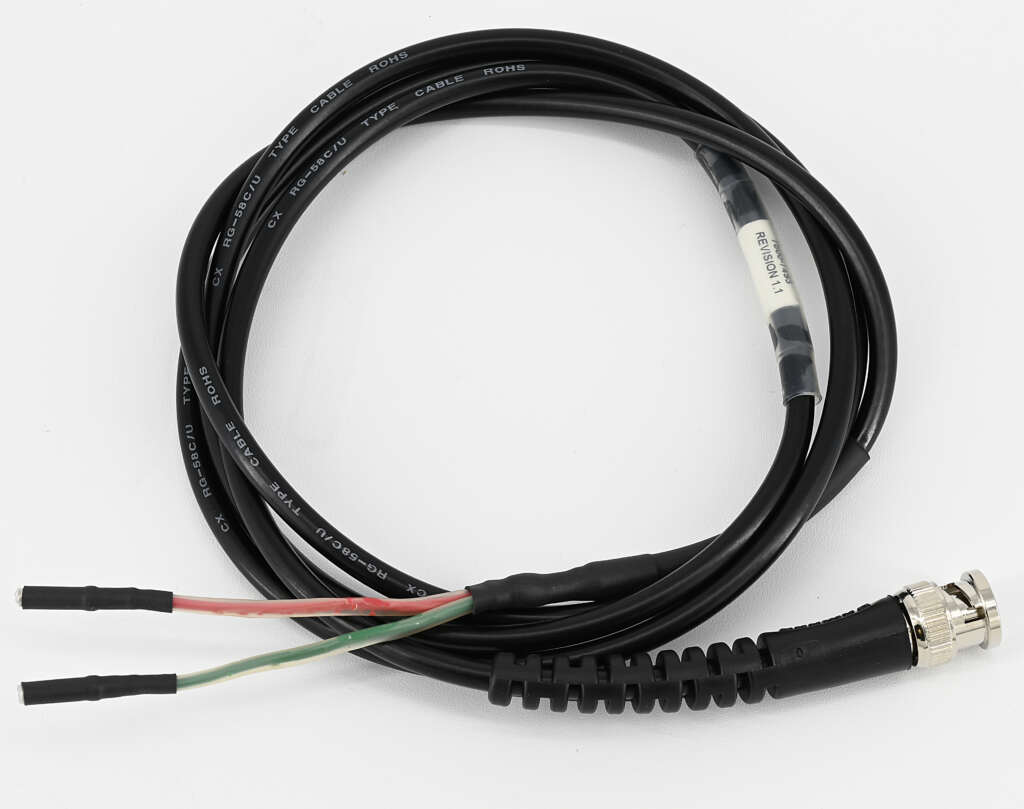

 | 1510A-7500-7493 BNC to Sockets Adapter Cable (Size 16) | 1510A-7500-7493 BNC to Sockets Adapter Cable (Size 16) | $208.00 | |

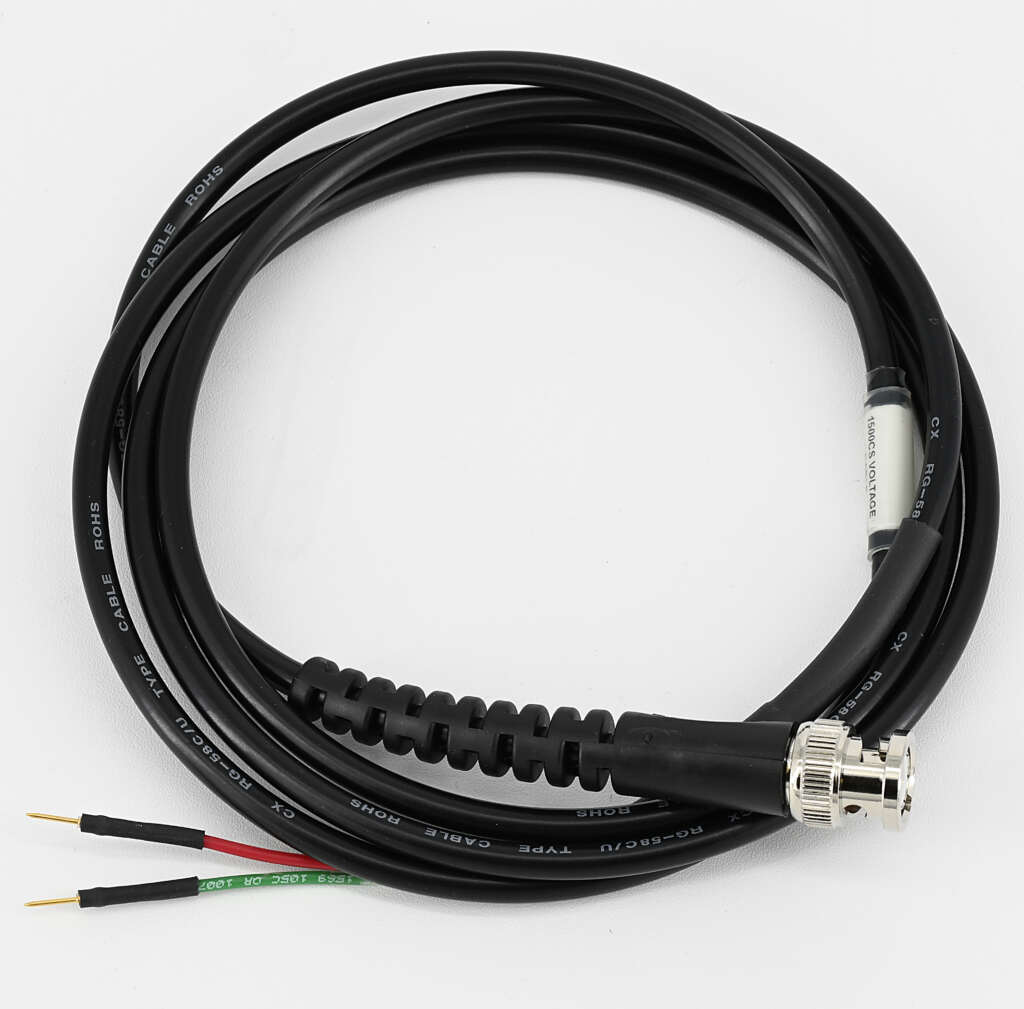

 | 1510A-7500-7494 BNC to Pins Adapter Cable (Size 22) | 1510A-7500-7494 BNC to Pins Adapter Cable (Size 22) | $208.00 | |

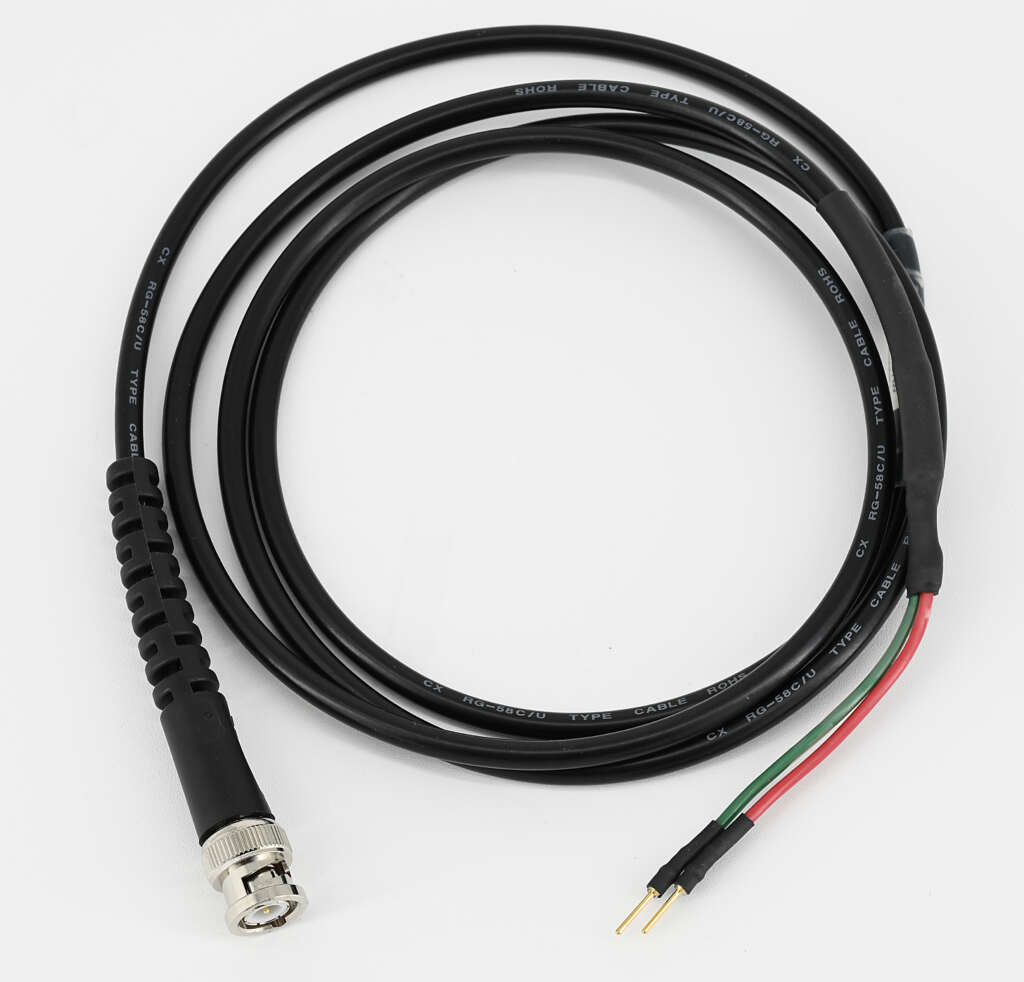

 | 1510A-7500-7495 BNC to Pins Adapter Cable (Size 20) | 1510A-7500-7495 BNC to Pins Adapter Cable (Size 20) | $208.00 | |

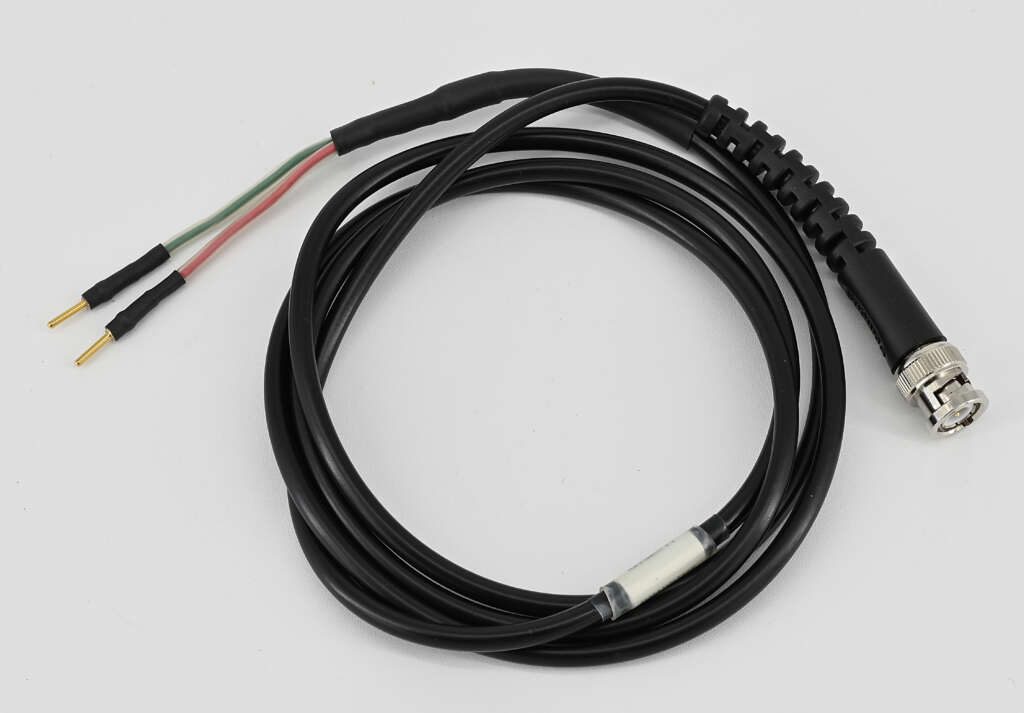

 | 1510A-7500-7496 BNC to Pins Adapter Cable (Size 16) | 1510A-7500-7496 BNC to Pins Adapter Cable (Size 16) | $208.00 | |
| 1510A-6000-4005 | 1510A BNC to BNC Adapter Cable | $123.00 | |
How Companies Use the 1510A Portable Signal Generator and Calibrator
- Calibrating monitoring systems
- Calibrating charge amplifiers
- Calibrating avionics equipment
- Cable testing
- Wire testing
- Machinery speed signal simulation
- Data acquisition systems testing
- Gas turbine instruments testing
- Bridge circuit simulation
- Correlating new equipment
- Instrument calibration
- Sensor diagnosis
- Vibration signal simulation
- Audio signal simulation
- Simulating transducer
Why Clients Choose the 1510A
“The precision is the most important thing. We love the precision…We also like the ability to vary phase output between two channels is an amazing feature. Before the 1510A we had no way to do this.” – Jim W. (Power company, South Carolina)
“Portability is key. We need to be all over the plant with it.” –Harold S (Company engineer, Florida)
“We like our unit because of its portability and ruggedness. It’s easily shipped from one location to another without anything breaking.” – Gregg J. (Medical manufacturing company)
