964i High Voltage Switching System
964i High Voltage Switching System 964i High Voltage Automated Test Switching System — The perfect solution for Automated Multi-Conductor, Multi-Point Hipot Testing Buy Now Request a FREE Demo! Download Spec Sheet Boost your testing efficiency with the Vitrek 964i High Voltage Switching System. Designed to seamlessly pair with Vitrek’s industry-leading hipot testers, the 964i streamlines high-voltage testing for complex cables, power flex circuits, appliances, medical equipment, and more. With the ability to automate up to 999 sequential tests at lightning-fast 0.025-second reconnect speeds, [...]
How to Reduce Inconsistent Wafer Measurements
How to Reduce Inconsistent Wafer Measurements Avoid 5 Common Mistakes That Destroy Wafer Measurement Accuracy You take pride in your work. You’re precise, accurate and depend on the right metrology equipment. Then why are your bare semi-conductor wafer measurements sometimes inconsistent? It may be something you’re doing (or not doing) — without realizing it. MTI Instruments discovered there are five common mistakes that engineers and users make with bare semi-conductor wafers. The “Five Mistakes Made When Taking Semiconductor Wafer Measurements” Tech-Brief details these all-too-typical errors that adversely impact measurements. [...]

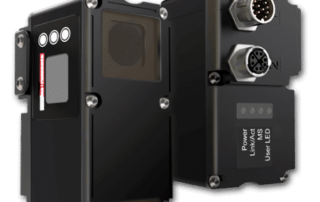

ProTrak G: 2D/3D Laser
ProTrak G: 2D/3D Laser Compact Size 2D / 3D profiling sensor for automation and process monitoring REQUEST A QUOTE Download Data Sheet The ProfileTrak G series are compact profiling sensors that fit in tight spaces. These 2D/3D sensors provide accurate profiling, height, width and positioning measurement using the latest CMOS technology with fast measuring rate of up to 4,000 Hz, built-in display, excellent measuring accuracy, compatible interfaces such as Gigabit Ethernet and much more. Available with measuring ranges from 36 mm to 400 mm for applications such as profiling, height, width and [...]
55CA: Single Channel Rugged Charge Amplifier
55CA: Single Channel Rugged Charge Amplifier Accelerometer charge conversion. Request Quote Download Spec Sheet Each 55CA Charge Amplifier provides one (1) channel of charge amplification, a buffered acceleration output signal, and an integrated (velocity) signal output. It also provides single-ended and differential outputs. About the 55CA: Single Channel Rugged Charge Amplifier Accelerometer Charge Conversion The 55CA Charge Amplifier conditions and amplifies charge-mode accelerometer signals. It is a rugged device designed to be used in engine test cells and other environments where [...]

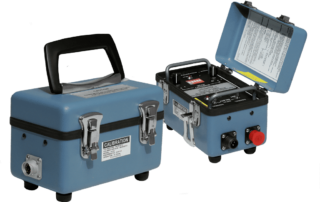

41CA: Dual Channel Rugged Charge Amplifier
41CA: Dual Channel Rugged Charge Amplifier Convert accelerometer charge signals into voltage signals Request Quote Download Brochure The 41CA Two Channel Charge Amplifier is used to convert accelerometer charge signals into voltage signals. Converted signals are then easily used by the PBS-4100 family of vibration analyzers. Two channels of amplification are provided. Each channel has separate gain and switchable test signals. Input Signal Configuration: Differential or Single Ended Channel gain settings: 1, 4, 10 mV/pC Highpass filter options: 0, 10, 15, 20, 25 Hz Lowpass [...]

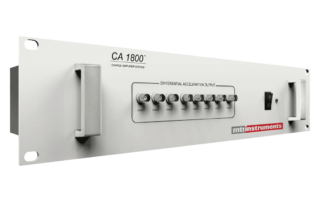

CA1800: Rack-mount Multiple Channel Charge Amplifier
CA1800 CA1800 Rack-Mount Multiple Channel Charge Amplifier Precision test cell rack-mounted accelerometer charge amplifier. Deliver up to eight channels of precision charge amplification for accelerometers and other charge-mode devices with independent gain settings and a compact, space-saving design. Request Quote Download Brochure POWERFUL. ADAPTABLE. PRECISE. Multi-Channel Signal Conditioning for Test Cells The CA1800 is a rack-mount multiple-channel charge amplifier engineered for test cell vibration analysis and engine trim balance applications. Featuring a compact chassis ideal for installations where space is at a [...]

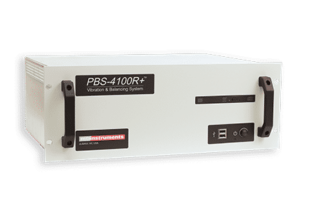

PBS-4100R+ Test Cell Vibration and Balancing System
PBS-4100R+ PBS-4100R+ Test Cell Vibration & Balancing System The industry-standard turbine vibration analysis and balancing tool engineered specifically for test cell and MRO environments. Deliver comprehensive vibration assessment and precise rapid balancing with seamless integration into your facility's data acquisition and control systems. Request Quote Download Data Sheet April ‘25 Press Release POWERFUL. PRECISE. INTUITIVE. Advanced Digital Engine Vibration Analysis for Test Cells The PBS-4100R+ is the premier rack-mounted vibration analysis and engine trim balance system designed for [...]
Engine Vibration and Balancing Principles
What do you think when you’re flying home, cruising at 30,000 feet and the drinks have just been served? Our engineers think about the ripple in the glass. That ripple signals vibration and is an indication that the engine may be in need of a balance. The MTII’s PBS-4100+ Series Turbine Vibration Analyzer/Balancing System was developed to ensure that Turbine engines run as efficiently as possible. Excessive vibration is detrimental for a host of reasons: energy intended for useful output is instead expended on the vibration vibration manifests as acoustic energy (noise), again wasting otherwise useful energy excessive [...]
Handheld Signal Source Generator Principles
The MTI 1510A Portable Signal Generator is a sophisticated two channel battery powered microprocessor controlled direct digital synthesizer. It can generate sine, square, saw tooth and triangle continuous signals on both channels as well as single pulse and odd pulses on the B channel to simulate tachometer output pulses. The main reason for two channels is to be able to create a phase shift in the A to B output signals as may be encountered in a piece of rotating equipment such as a jet engine. The A channel also has the ability to simulate precise DC signals or [...]
