Application Note:
Enabling Intelligent, Automation-Ready Electrical
Safety Testing in Modern Production
Introduction
As manufacturing environments evolve toward Industry 4.0, electrical safety testing can no longer operate as a standalone, manual process. Modern production lines demand seamless automation integration, high throughput, traceable data, and uncompromised measurement integrity. Hipot testing—critical for verifying insulation strength and operator safety—must now function as a synchronized element within fully connected manufacturing ecosystems.

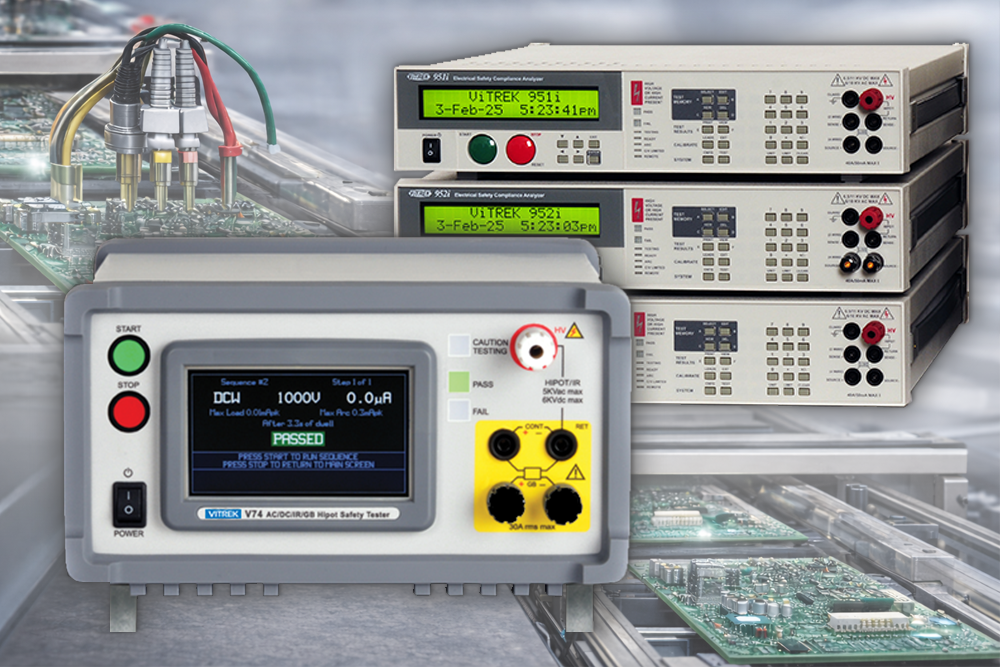

The Vitrek 95X Series Hipot Testers and Vitrek V7X Series Hipot Testers are engineered specifically for this environment. With programmable sequencing, rapid execution speeds, and native automation interfaces, these platforms transform traditional hipot testing into an intelligent, production-line-ready process.
Automation Challenges in Electrical Safety Testing
Manufacturers transitioning to smart production environments often encounter critical bottlenecks in electrical safety testing. Manual test configuration can slow line takt time & introduce variability between operators and shifts. At the same time, limited integration between traditional hipot testers and PLC or robotic systems makes it difficult to synchronize testing with automated production flow. These gaps become even more evident in high-mix manufacturing, where frequent product changeovers increase test complexity and setup demands.
Data management presents another major challenge. Incomplete or inconsistent data capture can create gaps during quality audits and compliance reviews, while growing product complexity and higher production volumes make scaling traditional test processes increasingly difficult. Overcoming these issues requires fast, fully programmable hipot testers that communicate seamlessly with automated infrastructure, while still delivering the precise, repeatable measurements necessary for safety, reliability, and regulatory compliance.
Programmable Sequencing for High Throughput
Both the 95X and V7X Series support fully programmable test sequences with sub-second execution capability. This allows multiple safety tests — AC hipot, DC hipot, IR and ground bond — to be combined into a single automated routine. Benefits include:
- Reduced overall cycle time
- Elimination of operator-dependent setup variations
- Consistent execution across shifts and production lines
- Removal of testing as a production bottleneck
For high-volume lines running 100+ units per hour, the speed advantage directly supports throughput targets without sacrificing safety coverage.
Designed for Integration into Automated Systems
Modern production test stations must communicate seamlessly with line control and automation systems to keep pace with today’s connected factories. Vitrek’s platforms are engineered with standard automation interfaces that allow direct integration into existing production infrastructure. RS-232 communication supports reliable command, control and data exchange, while built-in digital I/O enables straightforward coordination with PLCs and robotic handling systems.
In addition, remote triggering and interlock control allow the hipot tester to tie directly into plant safety system and automated test sequencing. Together, these capabilities allow electrical safety testing to function as fully synchronized node within IIoT-enabled manufacturing environments, supporting centralized control, streamlined workfl ows, and real-time production monitoring.
Scalable Multi-Point Testing with Built-In Data Compliance
Modern electrical assemblies are becoming more complex, requiring safety validation across numerous nodes and subsystems. When paired with external high-voltage scanners, Vitrek hipot testers can control up to 256 test points, enabling fully automated, repeatable multi-point insulation testing without manual rewiring or operator intervention. This scalable approach is ideal for advanced applications such as EV power electronics, aerospace power distribution systems, medical electrical devices, and industrial motor drives, where comprehensive coverage and repeatability are essential.
Equally important is the ability to capture and manage test data for quality assurance. Automated result logging provides complete tracability of test parameters and outcomes, supporting compliance with ISO 9001, IATF 16949, and AS9100 quality management standards, while aligning with IPC-9252 requirements for automated hipot testing systems. Exportable data formats allow seamless integration with MES and SPC platforms, helping manufacturers close the loop between production testing and continuous quality improvement.
Conclusion
The Vitrek 95X and V7X Series transform hipot testing into a fast, intelligent, and fully automated process aligned with Industry 4.0 manufacturing goals. By combining high-speed programmable testing, automation interfaces, scalable multi-point capability, and comprehensive data logging, manufacturers can increase throughput while maintaining the highest safety & compliance standards.
